~ Phased out ~
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The GTM-201-3GWA is an industrial Tri-band 3G WCDMA cellular modem with RS-232 and USB interfaces working on frequencies of Tri-band WCDMA 2100/1900/850 MHz, and Quad-band GSM 850/900/1800/1900 MHz. The modem which supports up to 7.2Mbps downlink speed and 5.76Mbps uplink speed services can utilize the 3G/GSM/GPRS network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. The GTM-201-3GWA enables internet connection over 3G, when 3G service is available. It automatically selects 3G or GPRS continue to work.
Moreover, the GTM-201-3GWA has the integrated TCP,UDP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of GTM-201-3GWA, the systems can be SMS and 3G/GPRS connection applications with various PLC and PC. Moreover, with the voice interface, these modems can also be applied to the alarm system with sounds.
|
| |
|
 |
|
|
|
| |
-

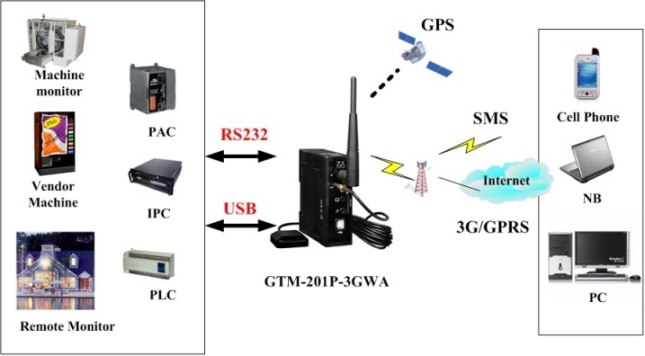

Remote Data Monitor and Control
-
Water, gas and oil flow metering and schedule
-
Power station monitoring and control
-
Oil field, weather forecast, environmental protection, street lamp monitoring and control
-
Fleet management
-
Vending machine
-
Vehicle logistics and diagnostics controlling
|
| |
|
 |
|
|
|
| |
-
Industrial design, making it a reliable cellular solution for data collection and transmission
-
Reliable GSM/GPRS/EDGE/WCDMA/HSPA network connectivity, providing fast and cost-effective long-range wireless applications
-
Supply Voltage: +10 VDC ~ +30 VDC
-
4 KV ESD Protection
-
Support in 2G and 3G
-
Tri-band WCDMA 850/1900/2100 MHz
-
Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
-
Designed for Data, SMS and Voice Applications
-
Support TCP Server, TCP Client, UDP Client Connection stack
-
Support Standard AT Commands
-
A Digital Input Channel for Resetting the System
-
Provide the MIC Input and Speaker (32 Ω) Output Interface
-
LED Indicators for 2G/3G and Power Indication
-
High Reliability in Harsh Environment
-
RS-232 Port Supports 9600 bps to 115200 bps
-
USB2.0 high speed
-
USB Driver for Windows, LinPAC (Linux 2.6)
-
Mount Easily on DIN-Rail
|
| |
|
 |
|
|
|
| |
Item |
GTM-201-3GWA |
GTM-201P-3GWA |
3G System |
Frequency Band |
WCDMA : 2100/1900/850 MHz |
Data Transmission |
WCDMA / HSDPA / HSUPA
Downlink transfer: Max. 7.2Mbps; Uplink transfer: Max 5.76Mbps
|
GSM / GPRS System |
Frequency Band |
GSM : 850/900/1800/1900 MHz |
GPRS connectivity |
GPRS class 12/10; GPRS station class B |
DATA GPRS |
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps |
CSD |
Up to 14.4 kbps |
Coding Schemes |
CS 1, CS 2, CS 3, CS 4 |
SMS |
SMS |
MT, MO, CB, Text and PDU mode |
GPS System |
Support Channels |
- |
32 |
Protocol Support |
- |
NMEA 0183 |
Comm. Interface |
COM ports |
TxD,RxD,GND |
COM Port Baud Rate |
9600 bps ~ 115200 bps |
USB |
USB 2.0 (high speed) |
USB Driver support |
Windows 98 / 2000 / XP / Vista / 7
LinPAC (Linux kernel 2.6) |
LED Indicators |
Power |
Red |
3G/GSM |
Green |
Power |
Protection |
Power reverse polarity protection |
Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
Required Supply Voltage |
+10 VDC ~ +30 VDC |
Power Consumption |
Idle: 83 mA @ 24 VDC; Data Link: 139 mA @ 24 VDC; Peak: 167 mA @ 24 VDC |
Connection |
8-Pin 3.5 mm Removable Terminal Block |
Reset Input |
Input Type |
Isolated, 3750 Vrms |
On Voltage Level |
+3.5 VDC ~ +30 VDC |
Off Voltage Level |
+1 VDC max. |
Input Impedance |
3 kΩ, 0.25W |
Mechanical |
Casing |
Plastic |
Flammability |
UL 94V-0 materials |
Dimensions (W x L x H) |
33 mm x 87 mm x 107 mm |
Installation |
DIN-Rail |
Environmental |
Operating Temperature |
-25 °C ~ +55 °C |
Storage Temperature |
-40 °C ~ +80 °C |
Humidity |
5 ~ 90% RH, non-condensing |
|
| |
|
 |
|
|
|
| |
|
Wireless 2G/3G library, supports G-4500 series, μPAC-5000 series and iP-8000 |
|
| |
|
 |
|
|
|
| |
| GTM-201-3GWA CR |
Industrial Tri-band 3G WCDMA modem (RoHS) |
| GTM-201P-3GWA CR |
Industrial Tri-band 3G WCDMA modem with GPS function (RoHS) |
