    I-8212W-3GWA:
      Industrial Tri-band 3G module
    I-8213W-3GWA:
      Industrial Tri-band 3G module with GPS function



    I-8212W-3GWA




    I-8213W-3GWA

    The I-8212W-3GWA/I-8213-3GWA is an industrial Tri-band 3G module with GPS function (only I-8213W-3GWA) that work on frequencies of WCDMA 2100/1900/850 MHz and GSM 850/900/1800/1900 MHz. These modules utilize the 2G/3G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS or 3G connection applications with our PAC series like iPAC-8000, WinPAC-8000, LinPAC-8000 or XP-8000.




    Application 1 :

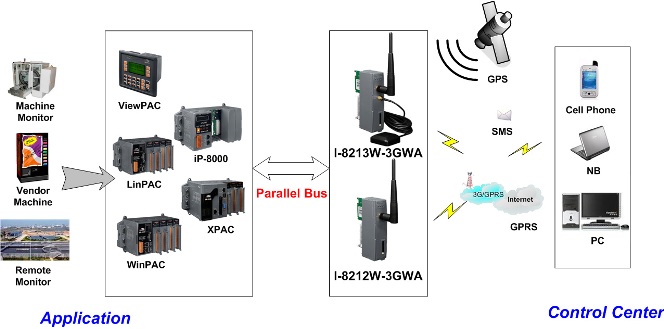

    Application 2:



    • Supports Tri-band WCDMA 2100/1900/850 MHz and Quad-band GSM 850/900/1800/1900 MHz
    • 4 KV ESD Protection
    • Designed for WCDMA, GPRS and SMS Applications
    • Supports TCP Server, TCP Client, UDP Client Connection stack from 3G or GPRS
    • Support Standard AT Commands
    • LED Indicators for Power, GSM and GPS(only I-8213W-3GWA) Indication
    • High Reliability in Harsh Environment
    • Support 32-channels GPS and NMEA v0183 v3.01(only I-8213W-3GWA)
    • PPS: 100 ms pulse output/sec for precise timekeeping and time measurement(only I-8213W-3GWA)
    • Support XP-8000, WinPAC-8000, LinPAC-8000, ViewPAC, iPAC-8000


    Models
    I-8212W-3GWA
    I-8213W-3GWA
    3G System
    Frequency Band
    WCDMA : 2100/1900/850 MHz
    GSM/GPRS System
    Frequency Band
    850/900/1800/1900 MHz
    GPRS connectivity
    GPRS class 12/10; GPRS station class B
    Coding Schemes
    CS 1, CS 2, CS 3, CS 4
    SMS System
    SMS
    MT, MO, CB, Text and PDU mode
    GPS System
    Support Channels
    -
    32
    Sensitivity
    -
    Tracking = up to -159 dBm (with external LNA)
    Cold start = up to -146 dBm (with external LNA)
    Acquisition Time
    -
    Hot start (Open Sky) = 2 sec.(typical)
    Cold start (Open Sky) = 36 sec.(typical)
    Protocol Support
    -
    NMEA 0183 version 3.01
    LED Indicators
    Power
    Red color
    GSM/GPRS
    Yellow color
    GPS
    -
    Green color
    Power
    Frame Ground Protection
    ESD, Surge, EFT, Hi-Pot
    Power Consumption
    Idle: 0.16 A @ 5 VDC; Data Link: 0.2 ~ 1.64 A (peak) @ 5 VDC
    Mechanical
    Casing
    Plastic
    Dimensions (W x L x H)
    30mm x 85mm x 114mm
    Environmental
    Operating Temperature
    -25°C ~ +75 °C
    Storage Temperature
    -30°C ~ +80 °C
    Humidity
    5 ~ 95% RH, non-condensing

    back


    Model I-8212W / I-8213W
          WinPAC-8000(WinCE5.0) V
         ViewPAC (WinCE5.0) V
          LinPAC-8000(Linux Kernel 2.6.19) V
          iPAC-8000 Compact PAC (MiniOS 7) V
          ViewPAC (MiniOS 7) V
          XP-8000 (Windows Embedded Standard 2009) V

    back

    [Software] Auto dial-up connection program


       I-8212W-3GWA CR    Industrial Tri-band 3G module (RoHS)
       I-8213W-3GWA CR    Industrial Tri-band 3G module with GPS function (RoHS)
