    Remote maintenance Solution

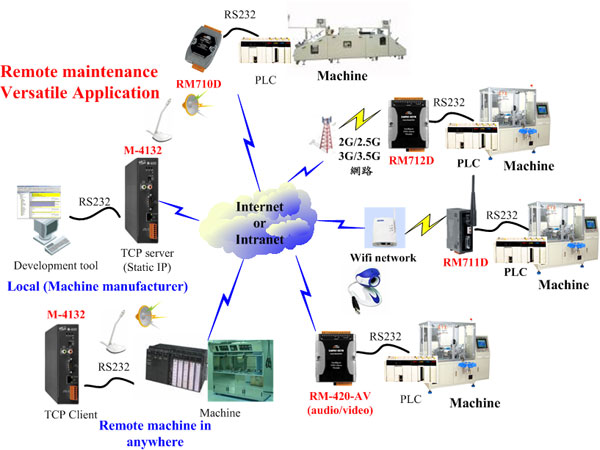

    ICP DAS is designed for Remote maintenance M-4132 module is specially designed for the remote maintenance solution with voice streaming. This module provides 2 major technologies on networking: Voice streaming and Pair connection. The Pair connection means that the user can operate remote COM port device via Ethernet TCP/IP protocol just like a local COM port and the Voice streaming means the user can talk to remote operator while operate remote COM-linked devices. Refer to the following graph.


    Model Name
    Function


    M-4132(M2M-420-A)
    • Linux 2.6 platform
    • Support voice streaming on network
    • Web-based administration
    • Support RM series server and client
    • Provide dynamic DNS function
    • Provide event record and e-mail function
    • Can be a management server for RM series


    M2M-520-AV
    • Linux 2.6 platform
    • Support USB camera
    • Support voice streaming on network
    • Web-based administration
    • Support RM series server and client function
    • Provide dynamic DNS function
    • Provide event record and e-mail function
    • Can be a management server for RM series


    M2M-710D
    • A low cost for Remote maintenance solutions
    • Support RM series Server/client function
    • Provide dynamic DNS function
    • Web-based administration
    • Support Pair connection between 2 M2M-710D
    • Watchdog timer suitable for use in harsh environments
    • Serial port +/-4 kV ESD protection circuit
    • Self-tuner ASIC controller on RS-485 port
    • 5-digit display
    • RoHS compliant with No Halogen


    M2M-711D
    • Support Wifi interface
    • Support RM series client function
    • Provide dynamic DNS function
    • Web-based administration
    • Support Pair connection between 2 M2M-710D
    • Watchdog timer suitable for use in harsh environments
    • Serial port +/-4 kV ESD protection circuit
    • Self-tuner ASIC controller on RS-485 port
    • 5-digit display


    RM Device server

    M-4132(M2M-420-A)
    Remote Maintenance Device server with audio communication
    Intelligent Remote Maintenance Device Server
    RM Device Terminal Unit
    Remote maintenance Ethernet Device Terminal Unit
    Remote maintenance Wi-Fi Device Terminal Unit

    Model
    OS
    CPU
    Flash
    RAM
    VGA
    Ethernet
    RS232/
    RS485
    USB Camera
    Audio
    WIFI
    GPRS
    TCP/IP
    M2M-520-AV
    Linux
    PXA-270
    520 MHz
    64 MB
    128 MB
    800*600
    1
    1/1
    Yes
    Yes
    ---
    ---
    RM server
    client
    M2M-420-A
    Linux
    PXA-255
    400 MHz
    32 MB
    64 MB
    ---
    1
    1/1
    ---
    Yes
    ---
    ---
    RM server
    client
    M2M-710D
    MiniOS7
    80186
    512 KB
    512 KB
    ---
    1
    1/1
    ---
    ---
    ---
    ---
    RM client
    M2M-711D
    MiniOS7
    80186
    512 KB
    512 KB
    ---
    1
    1/1
    ---
    ---
    Yes
    ---
    RM client
