I-8212W:
	Industrial Quad-band 2G GSM/GPRS module
I-8213W:
	Industrial Quad-band 2G GSM/GPRS module with GPS function


	~ New~

	I-8212W


	~ New~

	I-8213W

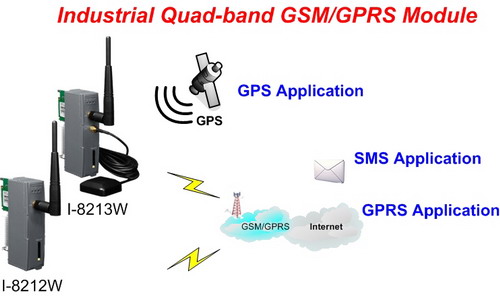

The I-8212W/I-8213W are industrial Quad-band GSM/GPRS module with GPS function (only I-8213W) that work on frequencies of GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz. These modules utilize the GSM/GPRS network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. I-8212W/I-8213W have the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of I-8212W/I-8213W, the systems can be SMS and GPRS connection applications with our PAC series like iP-8000, WinPAC, LinPAC or XPAC.

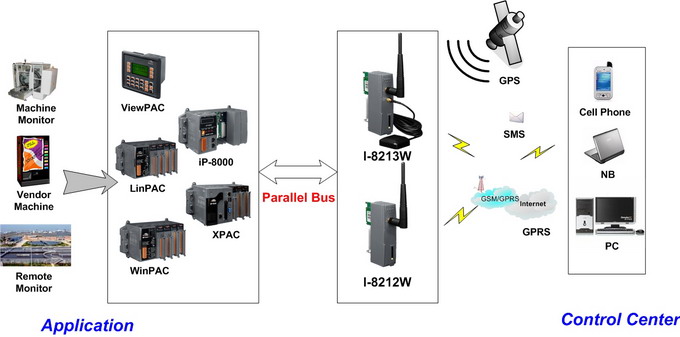

Application 1 :

Application 2:

back

Quad-band GSM/GPRS Modem Operating on 850/900/1800/1900 MHz
4 KV ESD Protection
Designed for GPRS and SMS Applications
Support TCP Server, TCP Client, UDP Client Connection from GPRS
Support Standard AT Commands
LED Indicators for Power, GSM and GPS(only I-8213W) Indication
High Reliability in Harsh Environment
Support 32-channels GPS and NMEA v0183 v3.01(only I-8213W)
PPS: 100 ms pulse output/sec for precise timekeeping and time measurement(only I-8213W)
Support XP-8000, WinPAC-8000, LinPAC-8000, ViewPAC, iPAC-8000

back

Models	I-8212W	I-8213W
GSM/GPRS System
GSM/GPRS Quad-band	850/900/1800/1900 MHz
GPRS Multi-slot	Class 10/8
GPRS Mobile Station	Class B
GPRS Class 10	Max. download speed 85.6 kbps; Uplink transfer: Max 42.8 kbps
CSD	Up to 14.4 kbps
Compliant to GSM Phase 2/2+	Class 4 (2 W @ 850/900 MHz); Class 1 (1 W @ 1800/1900 MHz)
Coding Schemes	CS 1, CS 2, CS 3, CS 4
SMS	Text and PDU Mode
GPS Interface
Support Channels	-	32
Sensitivity	-	Tracking = up to -159 dBm (with external LNA)
		Cold start = up to -146 dBm (with external LNA)
Acquisition Time	-	Hot start (Open Sky) = 2 s(typical)
		Cold start (Open Sky) = 36 s(typical)
Protocol Support	-	NMEA 0183 version 3.01
LED Indicators
Power	Red color
GSM/GPRS	Yellow color
GPS	-	Green color
Power
Frame Ground Protection	ESD, Surge, EFT, Hi-Pot
Power Consumption	Idle: 0.16 A @ 5 VDC; Data Link: 0.2 ~ 1.64 A (peak) @ 5 VDC
Mechanical
Casing	Plastic
Dimensions (W x L x H)	30mm x 85mm x 114mm
Environmental
Operating Temperature	-25°C ~ +75 °C
Storage Temperature	-30°C ~ +80 °C
Ambient Relative Humidity	5 ~ 95% RH, non-condensing

back

Model	I-8212W / I-8213W
WinPAC-8000(WinCE5.0)	V
ViewPAC (WinCE5.0)	V
LinPAC-8000(Linux Kernel 2.6.19)	V
iPAC-8000 Compact PAC (MiniOS 7)	V
ViewPAC (MiniOS 7)	V
XP-8000 (Windows Embedded Standard 2009)	V

back

I-8212W CR	Industrial Quad-band 2G GSM/GPRS module (RoHS)
I-8213W CR	Industrial Quad-band 2G GSM/GPRS module with GPS function (RoHS)
Contact us	For quotation ; For product information ; For project or solution discussion

back

ANT-421-01	3m external GSM/GPRS antenna
ANT-115-03	GPS Active External Antenna
