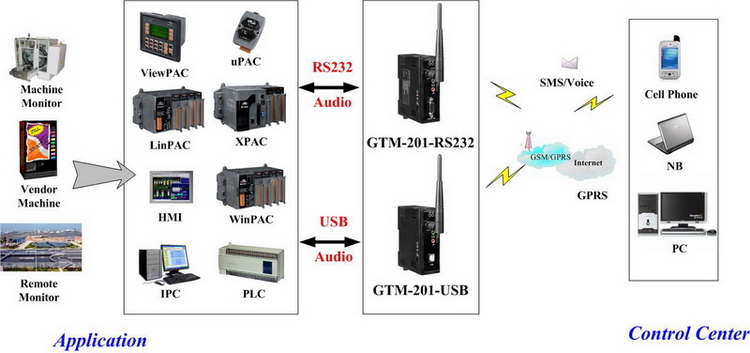

The GTM-201 series are industrial Quad-band GSM/GPRS modems with RS-232 and USB interfaces that work on frequencies of GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz. The modems utilize the GSM/GPRS network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. GTM-201 series have the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of GTM-201 series, the systems can be SMS and GPRS connection applications with various PLC and PC. Moreover, with the voice interface, these modems can also be applied to the alarm system with sounds.
|
| |
|
 |
|
|
|
| |
|
| |
|
 |
|
|
|
| |
-
Supply Voltage: +10 VDC ~ +30 VDC
-
4 KV ESD Protection
-
Quad-band GSM/GPRS Modem Operating on 850/900/1800/1900 MHz
-
Designed for GPRS, Data, Fax, SMS and Voice Applications
-
Support TCP Server, TCP Client, UDP Client Connection from GPRS
-
Support Standard AT Commands
-
A Digital Input Channel for Resetting the System
-
Provide the MIC Input and Speaker (32 Ω) Output Interface
-
LED Indicators for GSM and Power Indication
-
High Reliability in Harsh Environment
-
RS-232 Port Supports 9600 bps to 115200 bps (GTM-201-RS232)
-
USB Driver for Windows, WinPAC (WinCE5.0), LinPAC (Linux 2.6) (GTM-201-USB)
-
Mount Easily on DIN-Rail
|
| |
|
 |
|
|
|
| |
Models |
GTM-201-RS232 |
GTM-201-USB |
| GSM/GPRS System |
| GPRS/GSM Quad-band |
850/900/1800/1900 MHz |
| GPRS Multi-slot |
Class 10/8 |
| GPRS Mobile Station |
Class B |
| GPRS Class 10 |
Max. download speed 85.6 kbps |
| CSD |
Up to 9.6 kbps |
| Compliant to GSM Phase 2/2+ |
Class 4 (2 W @ 850/900 MHz); Class 1 (1 W @ 1800/1900 MHz) |
| Coding Schemes |
CS 1, CS 2, CS 3, CS 4 |
| SMS |
Text and PDU Mode |
| Serial Ports |
| Serial Standards |
RS-232 (DB9 Female) |
USB (B-TYPE) |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
- |
| Baud Rate |
9600 bps ~ 115200 bps |
- |
| USB Interface |
- |
Yes |
| Include Cable (CA-USB18) x 1 |
- |
USB type A connector (Type A to Type B cable provided) |
| Compatibility |
- |
USB 1.1 and 2.0 standard |
| USB Driver Support |
- |
Windows 98 and 2000; Windows XP and XP 64-bit; Windows Vista and Vista 64-bit; Windows XP Embedded; WinPAC (WinCE5.0); LinPAC (Linux kernel 2.6) |
| Reset Input |
| Input Type |
Isolated, 3750 Vrms |
| On Voltage Level |
+3.5 VDC ~ +30 VDC |
| Off Voltage Level |
+1V max. |
| Input Impedance |
3 kΩ, 0.25 W |
| LED Indicators |
| Power |
Red color |
| GSM/GPRS |
Green color |
| Power |
| Protection |
Power reverse polarity protection |
| Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
| Required Supply Voltage |
+10 VDC ~ +30 VDC |
| Power Consumption |
Idle: 15 mA @ 24 VDC; Data Link: 40 mA @ 24 VDC; Peak: 48 mA @ 24 VDC
|
| Connection |
5-Pin 3.81 mm Removable Terminal Block |
| Mechanical |
| Casing |
Plastic |
| Flammability |
UL 94V-0 materials |
| Dimensions (W x L x H) |
33 mm x 87 mm x 107 mm |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 °C ~ +55 °C |
| Storage Temperature |
-40 °C ~ +80 °C |
| Ambient Relative Humidity |
5 ~ 90% RH, non-condensing |
|
| |
|
 |
|
|
|
| |
| OS |
X86 |
X64 |
| Windows XP |
V |
-- |
| Windows 7 Starter |
V |
V |
| Windows 7 Home basic |
V |
V |
| Windows 7 Home Premium |
V |
V |
| Windows 7 Professional |
V |
V |
| Windows 7 Ultimate |
V |
V |
| Windows 8 |
V |
V |
| Windows 8 Professional |
V |
V |
| Windows 8 Enterprise |
V |
V |
| Windows server 2008 |
-- |
V |
| Windows home service 2011 |
-- |
V |
| Windows 2012 |
-- |
V |
|
| |
| back |
 |
|
|
|
| |
|
